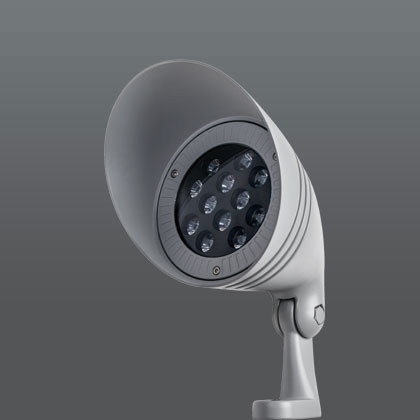

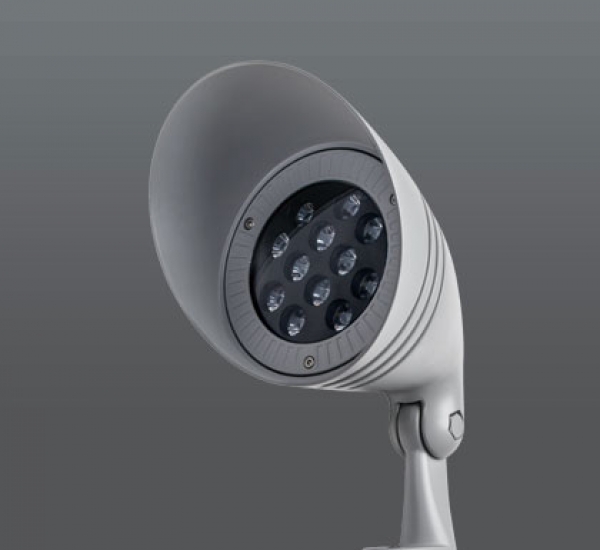

30.0823

Basic parameter:

- Material: ADC12 corrosion-resistant die-cast aluminum housing;

                  5mm clear safety glass

                  Anti-aging waterproof silicone gasket;

                  Stainless steel external fasten screws.


- Finishing: Double layers of DUPONT UV-resistant polyester powder coating


- Installation: Ambient temperature: -30℃~+45℃;

                     Tiltable: +90°/-30°

                     Vertical Rotation angle: 0~350°

                     Single Color: 1x 1m length 3-cores Ø7.0mm power supply cable;

                     Nickled plated brass waterproof cable gland

Product model maximum power Beam angle Color temperature / color control mode Luminous flux Figure No
30.0823.A6V220 12W 10°/15°/25°/40°/60° 2200K-5700K ON/OFF 1060Lm /
30.0823.A6V24 10W 10°/15°/25°/40°/60° 2200K-5700K ON/OFF 1060Lm /
